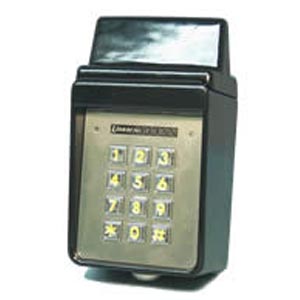

AKR-1

Features

Keypad Programmable
480 Entry Code Capacity
1-6 Digit Entry Code Length
4 Independent Outputs (Timed/Toggled)
4 Independent Timers
Accepts 480 entry codes, 480 block code transmitters, plus one fully supervised Model MGT safety edge transmitter
RF frequency: 318 MHz
Each Entry Code Can Be Programmed To Activate Either Or Both Relays
Relay Contacts Are Form “C” (N.O. & N.C)
Solid State Outputs Are Open Collector (Switch-To-Common)
Two Led Indicators
Courtesy Lamp
Piezo Sounder
Timed Anti-Passback (Last 3 Valid Entries)
Keypad Lockout
Tactile Key Feel
Door Sense Input
Inhibit Input
Request-To-Enter Input

Case dimensions:	4.00" W x 5.50" H x 3.00" D
Voltage:	12-24 Volts AC or DC
Current:	10 mA typical, 150 mA maximum
Outputs:	Relay #1 Form “C” 5 Amps @ 24 Volts maximum Relay #2 Form “C” 1 Amp @ 24 Volts maximum Solid state outputs (Outputs #3 & #4) Short-to-common 100 mA @ 24 VDC maximum
Frequency:	318 Mhz +- 500 Khz at 23ºC 318 Mhz +- 1 MHz -30ºC to +65ºC
RF 3db Bandwith:	4 MHz Typical
Sensitivity:	-95 dbm Minimun
Encoding	Linear Megacode Format
Temperature:	-22°F to 149°F (-30°C to 65°C)
Humidity:	5% to 95% non-condensing
