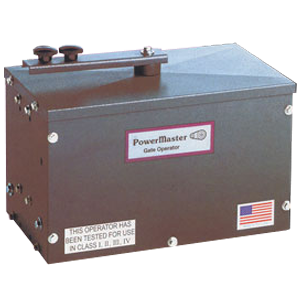

PowerMaster RSW 2000
Residential use, 115 Volts, ½ HP, gates up to 350 lb, 12 cycles per hour, 12 feet gate width, speed of 10 seconds from open to close 90º. U/L 325 listed for use in Class I through IV applications
| Power |
115 Volts, 1 Phase |
| Frequency |
50-60 Hz |
| Available Horse Power |
1/2 HP |
| Maximun Gate Weight |
350 lbs |
| Maximun Cycles per Hour |
12 |
| Maximun Gate Width |
12 feet |
| Gate Speed |
10 seconds from open to close 90º |
| Class 2 Low Voltage Control Circuit |
|
| U/L 325 Listed for use in Class I through IV |
|
| Weight |
80 lbs |
- Solid state P.C. board with Custom
- Programmed Micro Processor for state of the art control.
- External control, input terminal connections for:
- Radio Receivers
- Push Button Control Station
- Key Switches
- Loop Detectors
- Card Key Readers
- Telephone Entry Systems, etc.
- Timer to close with 0-60 sec. Adjustment standard.
- Longer timer available upon request.
- Maximum run timer for equipment protection (self adjusting)
- Master/Slave option with dedicated terminal connection provided.
- Easy Left/Right changeover.
- Time delay on reverse to ensure smooth gate motion and less stress on equipment.
- Spike suppressing circuitry for surge and lightning protection.
- Electrical dynamic brake for precise gate positioning.
- Integral current sensing, anti-entrapment circuitry with independent opening and closing sensitivity adjustments.
- External anti-entrapment circuitry with separate terminal connections for easy installation of contact and non-contact sensors.
- ½ HP, 115 Volts AC, 5.5 Amp., 1 phase, instant reversing, switchless, PSC motor, with thermal overload protection for smooth, quiet operation.
- Internal ON/OFF power switch.
- NEMA 1 one-button control station included.
- Heavy duty #11 Ga. Galvanized steel frame providing a strong and durable unit.
- Hard shell, baked-on weather resistant powder coating, with an attractive textured finish, for years of aesthetic protection from the elements.
- Industrial V-belt primary reduction for smooth, quiet operation.
- #65 Sprocket and roller chain arrangement for final drive reduction.
- Oil impregnated brass bearings, supporting output drive shaft, for dependable service with low maintenance.
- Drive arm easily disconnected for manual operation in case of a power failure.
- Easy adjustable limit switch cams for precision gate positioning.
- Soft start and stop at open and close limits of travel, due to the inherent geometry of the articulating drive arm linkage.
- Post or par mountable for easy installation
